| HP / POTENCIA | 7.5 |
| RPM | 3600 |
| Fase | 1 |
| Voltage | 208-230/460V 60Hz |
| Frame | 213TC |
| Flanche | C-Face |
| Degree of Protection | IP55 |
| Enclosure | TEFC |

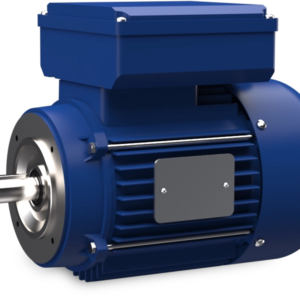

El motor eléctrico monofásico de alto torque de acero laminado 213TC de Giravan, 208-230/460 V, 60 Hz, 7,5 HP, 3600 RPM, con montaje en patas y C-Face, presenta un alto torque de arranque, placas de extremo de hierro fundido y está protegido IP55 para uso en exteriores.
| Model | F213T7.5S2A | Service Factor | 1.15 |
|---|---|---|---|
| Poles | 2 | Insulation Class | F |
| Horsepower | 7.5 | Bearing DE (ODE) | 6307RZ (DE), 6206RZ (ODE) |
| kW | 6 | Impregnation Method | Vacuum Pressure Impregnation (VPI) |
| Phase | 1 | Junction Box Material | Steel |
| Synchronous Speed (RPM) | 3600 | Fan Guard Material | Steel |
| Nominal Speed | 3490 | Frequency (Hz) | 60 |
| Degrees of Protection | IP55 | Enclosure | TEFC |
| Voltage | 208-230/460V 60Hz | Flanche | C-Face |
| Peso (kg) | 55.7 | Frame | 213TC |
| Frame Material | Rolled Steel | Removable Feet | NO |
| Rotatable Feet | NO | Double Shielded Feet | YES |
| Winding Connection | Single Phase | Full Load Torque (lb-ft) | 11.3 |
| Locked Rotor Torque (%) | 314 | Breakdown Torque (%) | 190 |
| Full Load Amps | 31.5 A @ 208V, 29 A @ 230V, 15 A @ 460V | LRA (A) | 616 |
| Power Factor @ 100% Load | 99 | Efficiency @ 100% Load | 83.5 |
| RULE | NEMA |
